D3 and Vega Lite Introduction

Posted on | In ,
First week to learn how to use D3.js and Vega-Lite

HighLight

The Basics of D3.js

The origin of the library:

M. Bostock, V. Ogievetsky and J. Heer, “D³ Data-Driven Documents,” in IEEE Transactions on Visualization and Computer Graphics, vol. 17, no. 12, pp. 2301-2309, Dec. 2011, doi: 10.1109/TVCG.2011.185.


Overview

使用 JavaScript 修改 DOM 元素的传统方法:

var paragraphs = document.getElementsByTagName("p");
for (var i = 0; i < paragraphs.length; i++) {
  var paragraph = paragraphs.item(i);
  paragraph.style.setProperty("color", "blue", null);
}

使用 D3 达到同样的效果

d3.selectAll("p").style("color", "blue");

d3-selection 对 DOM 元素进行了封装，支持方法链，接口更加友好

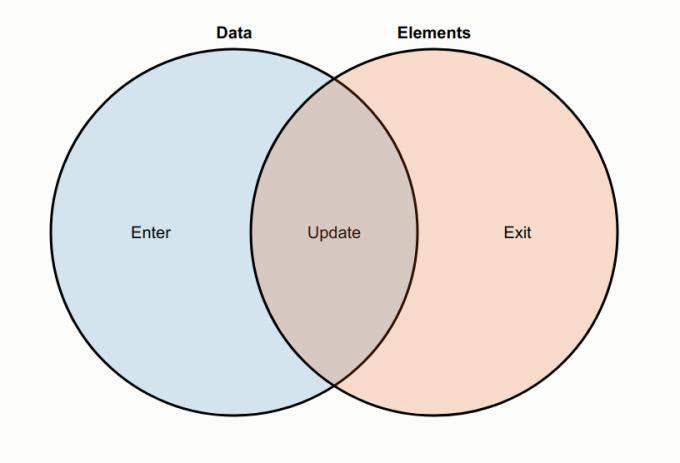

数据绑定是 D3 的核心功能


d3.select("body")
  .selectAll("p")
  .data([4, 8, 15, 16, 23, 42])
  .enter().append("p")
    .text(function(d) { return "I’m number " + d + "!"; });

D3 包含多个模块，可单独使用，提供了强大的可视化能力

The Basics of Vega-Lite

The origin of the library:

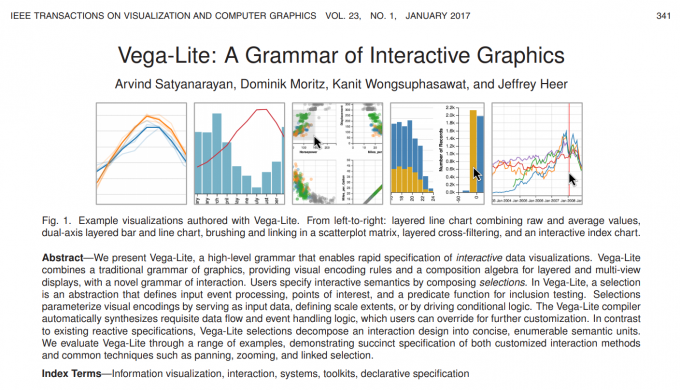

A. Satyanarayan, D. Moritz, K. Wongsuphasawat and J. Heer, “Vega-Lite: A Grammar of Interactive Graphics,” in IEEE Transactions on Visualization and Computer Graphics, vol. 23, no. 1, pp. 341-350, Jan. 2017, doi: 10.1109/TVCG.2016.2599030.


Overview

Vega-Lite 使用声明式语法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
{

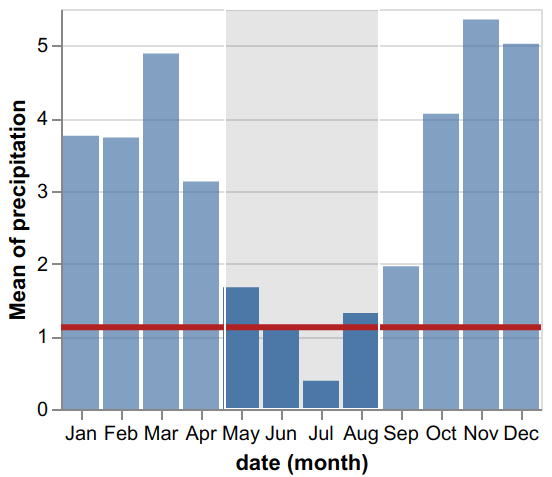

  "data": {"url": "data/seattle-weather.csv"},
  "layer": [{
    "selection": {
      "brush": {
        "type": "interval",
        "encodings": ["x"]
      }
    },
    "mark": "bar",
    "encoding": {
      "x": {
        "timeUnit": "month",
        "field": "date",
        "type": "ordinal"
      },
      "y": {
        "aggregate": "mean",
        "field": "precipitation",
        "type": "quantitative"
      },
      "opacity": {
        "condition": {
          "selection": "brush", "value": 1
        },
        "value": 0.7
      }
    }
  }, {
    "transform": [{
      "filter": {"selection": "brush"}
    }],
    "mark": "rule",
    "encoding": {
      "y": {
        "aggregate": "mean",
        "field": "precipitation",
        "type": "quantitative"
      },
      "color": {"value": "firebrick"},
      "size": {"value": 3}
    }
  }]
}


  • Data: 表格型数据
  • Mark: 可视化元素
  • Encoding: 数据到可视化的映射
  • Transform: 数据转换(聚合、过滤等操作)
  • View Composition: 多视图
  • Selection: 交互

Vega-Embed: Vega-Lite 与 D3, Echarts 等一起使用

Comparison

https://vega.github.io/vega/about/vega-and-d3/
